| Specifications |

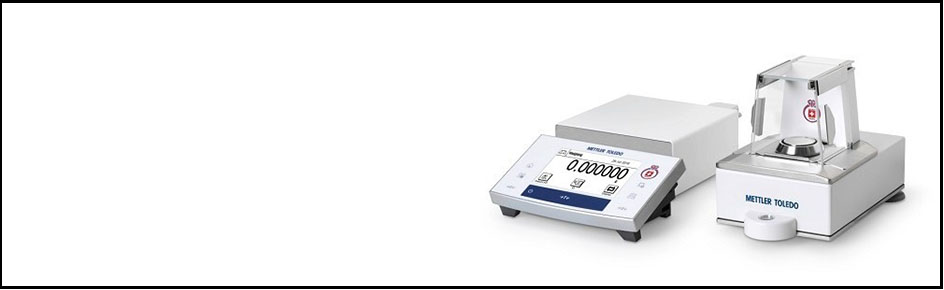

Weigh Module WXTJ3DU |
| Products |
MICRO BALANCE |
| Maximum Capacity |
1.2 g/3.2 g |
| Readability |
0.001 mg; 0.01 mg |
| Repeatability, limit |
0.001 mg |
| Minimum Weight (U=1%, k=2), typical |
0.16 mg |
| Adjustment
Internal / FACT
Weighing Pan Diameter |
32 mm |
| Legal for Trade |
No |
| Minimum Weight (USP, 0.1%, typical) |
1.6 mg |
| Repeatability (typical) |
0.0008 mg |
| Linearity, limit |
0.02 mg |
| Linearity, typically |
0.006 mg |
| Settling Time |
5 s |
| Dimensions (DxHxW) |
261 mm x 165 mm x 127 mm |
| Housing
Die-cast aluminum
Interfaces |
RS232 |
| Balance Model (Carat/Gold)
Carat; Gold |
Display
Touchscreen |
| Guaranteed Repeatability
|
0.001 mg |
| Material Number(s) |
30335763 |
